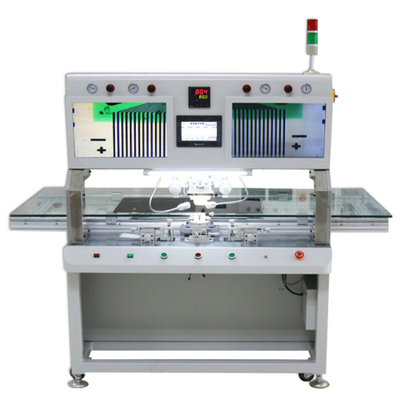

LCD Flex Cable Pressing COF Hot TAG ACF Machine Repair Shops TV Bonding LCD Screen Repair Machine

Main Features:

1, PLC control, pulse heating mode, combined with titanium alloy extrusion head, rapid heating and rapid cooling, can be set up four heating, accurate temperature control.

2, 5.7 "color touch screen LCD display input, realizing the temperature curve, according to the Chinese menu, all the parameters set browse concise and straightforward.

3, large load platform, stepper motor drive, multiple IC can be preset position, the platform automatically move the pressure to stay.

4, under the high magnification camera system, ensure that the product clearly counterpoint.

5, powerful software, perfect the system debugging, automatically detect fault and alarm function.

What Problem it Can Repair :

Vertical, horizontal, black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, horizontal, vertical half and half fault, and so on.

Application: suitable for 12-80inch TFT Panel and TAB, FPC and LCD or PCB board combination bonding.

The LCD bonding machine Videa Link: https://youtu.be/oni6onC7Ifw

Technical Parameters:

Power:                              AC220V±10%, 50Hz, 4500W

Work environment:          10~60℃, 40%~ 95%

Work pressure:                0.5 ~ 0.7 Mpa

Welding stress:                5 ~ 28 KGF

Temperature Settings:      one to four paragraphs

Temperature Settings:      RT ~ 399 ℃

Hot pressing time:            1 ~ 99 s

Hot-pressing precision:     pitch 45um

Production capacity:         35 s/TAB or COF package

Hot pressing head size:     MAX 60 x 8 mm

Fuselage size:             1508 mm (L) x 1245 mm (W) x 1483 mm (H)

weight:                             About 300 kg
