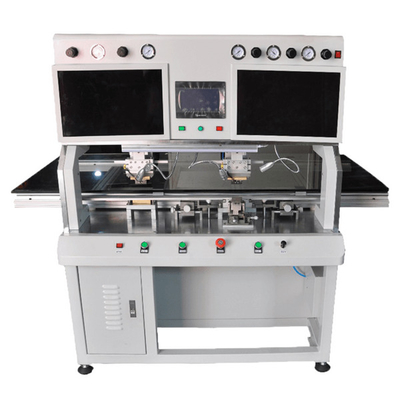

The equipment is suitable for variety of FPC / COF / TAB and LCD or PCB board combination bonding. It is a professional high precision repair equipment for repairing 2K, 4K and curved screen different sizes of LCD screen cable damage or natural fell off. It can Repair Upto 7-100 Inch TV Screen.
SPECIFICATIONS FOR ST-100S TAB Bonding Machine | ||||||
Power comsumption | Single head | AC220V±10%, 50-60 Hz | ||||
Machine Power | 4000W | |||||
Temperature error range | ±0.5°C | |||||
Main performance parameters | Operation mode | 7inch touch screen control | ||||
Alignment system | HD CCD camera | |||||
Programming control device | PLC controller | |||||
Machine details | Machine size | 1800mm (L) ×1200mm (W) ×1400mm(H) | ||||
Work pressure | 0.4-0.8Mpa | |||||
Support Max LCD size | Up to 100 inch | |||||
If you have any questions about our lcd cof tab bonding machine, feel free to contact us via 86-13823389052.
Welcome to visit us, we are happy to show you a demo.
Name: Single Head Tab/COF Bonding Machine
Brand: Silman
The machine used for repairing vertical, horizontal, black belt, the black line, the color line, ribbons, multi line, flower screen, black screen, white show, horizontal, vertical half and half fault, and so on.
Easy to use and operate.
Name: Emergency Stop
Original: Germany
Equipped with Emergency Stop button to preventing
machine damage with wrong operate.
Name: Digital Programmer
Original: Japan
Precision temperature controller
Machine Error Accurancy:±0.5°C
Name: Heating head
Brand: Omeron
Original: Japan
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Machine Delivery | ||
Shipping way | 1 set By air Or Express, 2 or above By Sea | |
Shipping terms | We work with EXW, FOB, CIF, DDU, DDP etc | |
Packaging | ||
Size | 127 (L) * 98 (W) * 168 (D) | |
Weight | 280KGS | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
